Making a large acrylic display case changes the design problem. Long unsupported spans, larger removable panels and the route into the room can matter more than the nominal size of the object. Begin with the support structure and opening, rather than enlarging every panel in a small bonded box.

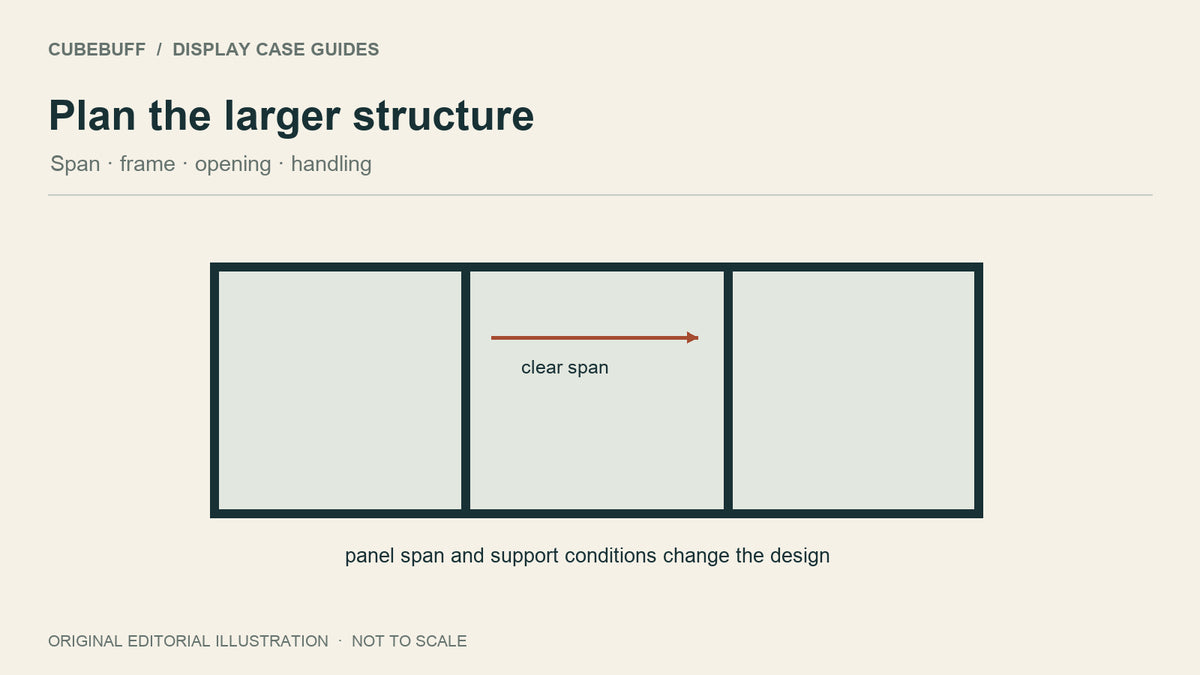

This guide prepares a design brief for a fabricator. The illustration is conceptual; it is not a tested structural plan. No panel thickness, load capacity or stacking permission is established here.
Separate the base, frame and clear panels
Draw the load path from the displayed object through the base to its supporting furniture or floor. Then draw how each clear panel is supported. A perimeter frame can give a panel defined edges, while intermediate members can reduce a clear span. Both choices change sightlines and access.
Do not count a decorative trim as structural support without a confirmed connection. Equally, a top panel that closes the enclosure should not silently become a shelf for another display.
Specify the open unsupported span
Record the actual clear distance between supports for each panel. Its overall cut size includes the supported portion and may therefore be different. Identify whether the relevant panel is a vertical cover, a shelf, a top or a base.
ACRYLITE provides different thickness calculations for different support and load conditions. Its center-load tool has defined assumptions. A value from one calculation cannot be applied to a cantilever, an unsupported cover or a different joint arrangement.
Choose access before choosing an uninterrupted front
A single large lift-off cover offers broad access but needs a clear lifting route and a safe place to rest. Removable front panels can reduce the part you handle, although their frame and retention method must be designed. Doors add hinges, sweep space and hardware loads.
Draw the largest service opening and the path of the model through it. Include the people or handling equipment needed. A design that works after the model is inside may still fail at the insertion stage.
Plan transport as an assembly sequence
Measure doorways, stairs, corners and the final installation area. Check the dimensions of the largest transported component, not only the finished case footprint. Record whether the enclosure will be assembled in the room and which connections remain serviceable afterward.
Keep the model out of the construction area until the empty structure has been checked. Prepare a base that can receive the model without using a clear panel as a lifting point. Protect the display separately during any adjustment.
Give the fabricator a complete brief
- Required internal envelope and exact object or set number.
- Panel roles, open spans and support edges.
- Base loads and where they act.
- Chosen opening and removable-part sizes.
- Joint details, material grade and surface finish.
- Transport route, assembly location and maintenance space.
Ask for a confirmed construction drawing and handling instructions before purchasing sheet. A sheet quotation alone does not review the frame or joints. Keep any assumptions about room conditions and future additions explicit.
What is different from a small acrylic cover?
The small-cover panel geometry describes how parts meet. This large-case brief addresses how the structure is supported and accessed. A valid geometric formula does not establish that a larger panel will behave acceptably.
For a tall LEGO landmark, use the separate Eiffel Tower 10307 enclosure brief. For a multi-level furniture project, use the display cabinet guide, where shelves, doors and anchoring introduce another set of decisions.
