To light a display case you already own, first decide what you want to see: the whole model, its front surface or the background. Then try the light’s position before attaching it. A brighter strip in the wrong place can put the reflection of the LEDs directly in front of the object.
This guide covers a retrofit using a documented low-voltage lighting system. It does not certify a particular case, adhesive or electrical installation. Keep mains connections outside the scope of an improvised enclosure project and use the equipment manufacturer’s installation instructions.
1. Check whether the enclosure can accept a retrofit
Identify the panel material, coatings, opening route and available mounting surfaces. A removable cover should remain removable after the wiring is installed. Do not drill a case, alter its bracket or apply an unfamiliar adhesive without confirming the construction and material compatibility.
An external light may be a better option when the case has no suitable cable route. It lets you change the lighting without changing the enclosure. Check its reflection from the normal viewing position before deciding that an internal strip is necessary.

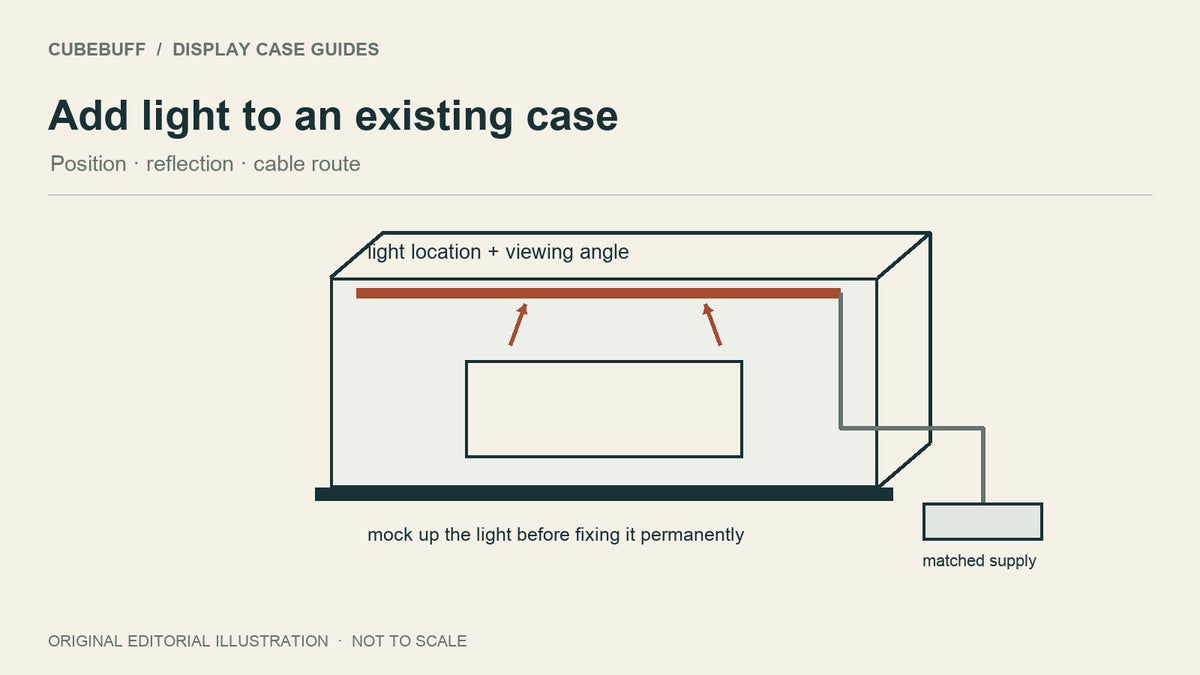

2. Mock up the lighting position
With the model protected and the case empty, plan possible locations along the top-front edge, sides or outside the cover. Unroll LED tape before powering it and follow its manual. Use a separate temporary support that does not damage the panel. Compare the appearance from standing and seated positions.
Look for visible LED dots, a bright line reflected in the front panel and deep shadows behind the model. A diffuser or a shielded channel changes the appearance and needs its own space. It does not establish a safe temperature or make an unsuitable light suitable.
3. Match the complete electrical system
Record the strip model, rated voltage, length, power demand, controller and supply. A plug that fits does not prove compatibility. Use the chosen system’s documented limits for connections, maximum runs and any dimming equipment.
The Armacost RibbonFlex Pro instructions illustrate why the actual product manual matters: cutting points, supply selection and installation conditions belong to that system. Do not transfer its ratings to a CubeBuff LED option.
4. Preserve a serviceable cable route
Keep wiring away from the opening edge and from parts that move during access. Plan slack where a removable part requires it, without leaving a loop that catches the model. Locate the switch and detachable connection where you can reach them without lifting a loaded case.
If a route would require drilling a clear panel, stop and use the sheet manufacturer’s fabrication guidance or a qualified fabricator. Do not trap the cable beneath the base or close a cover on its insulation.
5. Fit, inspect and maintain the light
Follow the selected mounting instructions, including any required channel and heat management. An LED tape instruction to clean a mounting surface with alcohol is not permission to use alcohol on an unknown acrylic coating. Confirm both the lighting and panel requirements.
Disconnect power before cutting or changing connections. Inspect the empty installation for trapped cables, loose parts and interference with the opening. Do not claim a safe operating temperature from touch alone or from the sheet’s maximum service temperature. The lighting system and the displayed object each have their own limits.
Photograph the display to compare reflections
After checking the complete lighting system and installation, use a phone or camera to compare the display from your normal viewing position. Treat the pictures as a record of your own setup, not a measurement of the panel's optical performance.
- Make a baseline. Put the camera on a stable support, frame the model through the front panel and note the room lights. Start with the camera flash off. Keep the model and case in the same positions.
- Locate the reflection. Look for a window, lamp, bright clothing or a visible line of LEDs across the model. Identify what appears in the reflection before changing the lighting.
- Change one thing. Move one temporary external light or change one room-light condition, then take another picture from the same camera position. Keep exposure and white balance consistent where your camera allows it; otherwise note that automatic settings may change the comparison.
- Judge both views. Compare the reflection, dark model details and background, then look at the display directly from your normal position. Keep the arrangement that serves your actual view rather than only one photograph.
Nikon's through-panel photography guidance explains how room surfaces, clothing and camera equipment can appear as reflections. The observation is useful here; its aquarium equipment recommendations are not instructions to press a lens or hood against a freestanding display case.
Keep the camera and temporary supports off the acrylic and out of the opening route. These steps provide a comparison method. They do not promise a reflection-free photograph or report a CubeBuff case test.
For a separate background decision, use the fixed-position background comparison. For evaluating a product's published lighting claims, use the lighting evidence guide.
What if I prefer a case with lighting already specified?
Compare the actual options in LEGO display cases with lights. Some listings also have unlit configurations. Use the lighting review evidence guide to check what the published claims establish. For a build that starts with a new enclosure, use the separate integrated-lighting design guide, which addresses a service bay before panels are cut.
Sources and editorial method
Lighting references reviewed 15 October 2026; the photography reference was reviewed 19 October 2026. This article uses published documentation and original explanatory diagrams. It does not report a hands-on product test.
