A DIY wall-mounted acrylic display case needs a structural back and a clear route for its load into the wall. The transparent cover is only one part of the project. Design the support and opening before drawing the acrylic panels.
This is a design brief for review by a fabricator or installer. It is not a tested hanging-case plan and does not prescribe a universal backplate thickness, screw spacing or wall anchor. For installing a finished wall case, use the separate mounting workflow.

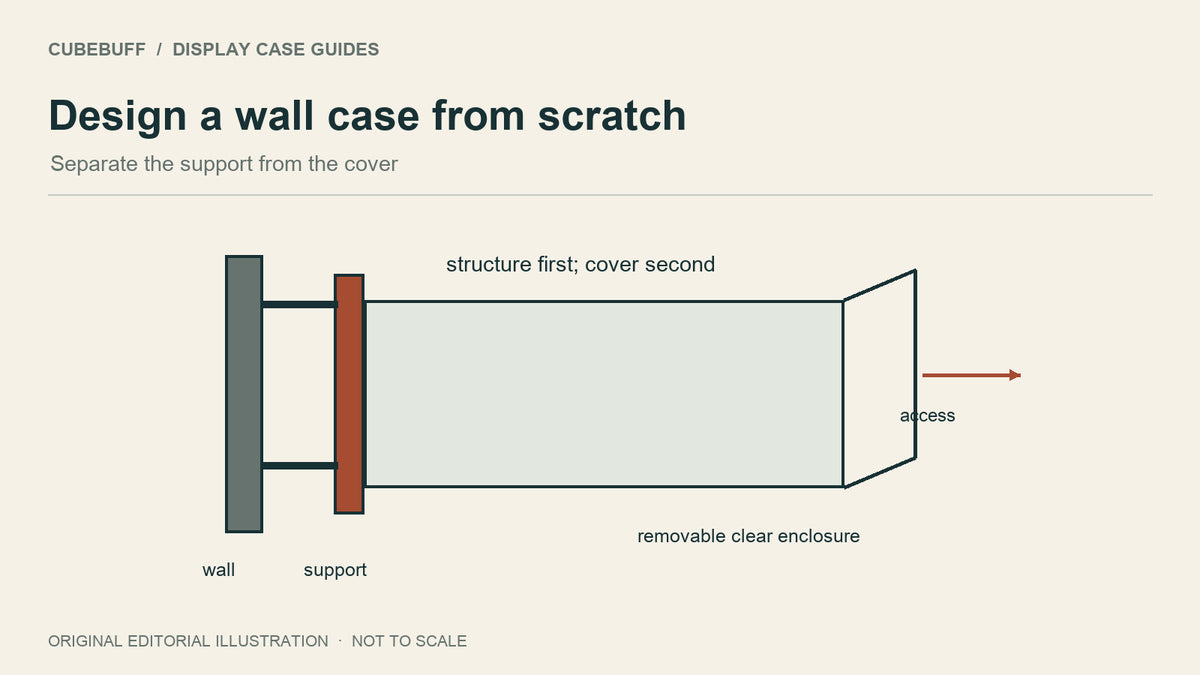

Draw the load path in four stages
Start at the model or figures. Show how their weight reaches the base or shelves, how those parts connect to the back structure, how the back engages its bracket and how the bracket is fixed to the actual wall. Every connection needs a defined role.
Do not hang a loaded shelf from a clear front panel by accident. A removable cover should not release the model support when it is opened. Identify the parts that remain in place during maintenance.
Design the back structure around the display
Record the full loaded arrangement, including the enclosure, internal shelves, lighting and accessories. Choose candidate materials and connections for review. A decorative print or thin rear sheet is not a structural back merely because it sits against the wall.
Show the position of every shelf and its connection. A row of figures, a deep vehicle and a tall helmet place different demands on the internal layout. Keep the actual model envelope and its support points on the drawing.
Choose a cover that can be serviced
Compare a removable front with a lift-off enclosure. Check where the part moves and where you can safely place it. Include ceiling clearance, side furniture and your hands in that route.
If the cover has retaining fasteners, make them accessible without first removing an unsupported model. If it uses a locating groove, confirm the engagement and the release method in the construction drawing. Do not treat friction alone as a reviewed retention system.
Detail acrylic after the structure is resolved
Give each panel a defined span and support arrangement. Select the material and fabrication method together with the joints. The ACRYLITE design tools show why loading and support conditions are part of thickness selection.
Any hole in acrylic must be designed for that sheet, edge position and connection. Use the manufacturer’s drilling guidance and a qualified fabricator where needed. Drilling a convenient hole is not a wall-mount design.
Match the bracket to the wall
Identify the wall at the intended position and obtain a suitable fixing specification for the complete system. Do not copy an anchor choice from a photograph or add individual fastener ratings to invent a case capacity.
Before fabrication, the installer needs the actual wall construction, complete load, bracket geometry and access plan. Concealed services and the wall’s condition also affect the installation. Resolve those facts before marking holes.
What should be approved before cutting?
- The support base or shelves and their connections.
- The structural back and wall engagement.
- The clear cover’s support and retention.
- The complete loaded arrangement and access route.
- The material, fabrication and installation instructions.
Check the empty completed structure according to the reviewed design before placing valuable models inside. A visual mock-up proves neither capacity nor wall suitability. If you want a supplier-made solution, compare the exact wall product and obtain its instructions before ordering.
Sources and editorial method
Sources reviewed 15 October 2026. This article uses published documentation and original explanatory diagrams. It does not report a hands-on product test.
